EAP772
| DONANIM ÖZELLİKLERİ | |
|---|---|

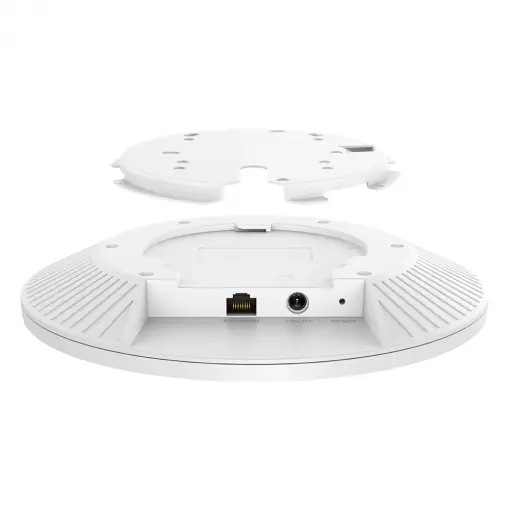

| Arabirim | 1× 2.5G Ethernet Port |
| Buton | Reset |
| Güç Kaynağı | 802.3at PoE or 12V/2.5A DC |
| Güç Tüketimi | • 24.05 W (For PoE); • 20.92 W (For DC) |
| Boyutlar ( W X D X H ) | 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) |
| Anten Tipi | • 2.4 GHz: 2× 4.0 dBi • 5 GHz: 2× 5.0 dBi • 6 GHz: 2× 5.0 dBi |
| Bluetooth | 1 × 4.0 dBi, Bluetooth 5.2 *Firmware update may be required. |
| Montaj | Ceiling / Wall Mounting (Kits Included) |
| KABLOSUZ ÖZELLİKLERİ | |
|---|---|
| Coverage | 140㎡(1500 ft²)§ |
| Wireless Client Capacity | 380+** |
| Kablosuz Standartlar | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frekans | 6 GHz, 5 GHz, and 2.4 GHz |
| Bağlantı Hızı | 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz) + 5765 Mbps (6 GHz)† |
| Kablosuz Fonksiyonlar | • MLO‡ • 4K-QAM‡ • Seamless Roaming(802.11k/v/r) • MU-MIMO‡ • EHT320‡ • Mesh△ • BSS Coloring‡ • OFDMA‡ • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDS:24(8 on each band) • Wireless Schedule • Reboot Schedule • QoS(WMM) • Rate Limit • Static IP/Dynamic IP • RADIUS Accounting • MAC Authentication |
| Kablosuz Güvenlik | • Captive Portal Authentication△ • Access Control • Maximum number of MAC Filter: 4,000 • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| İletim Gücü | < 20 dBm (2.4 GHz, EIRP) < 23 dBm (5 GHz, band 1&band 2, EIRP) < 28 dBm (5 GHz, band 3, EIRP) < 23dBm (6 GHz, EIRP) |
| YÖNETİM | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller. |
| Eposta Uyarı | Yes |
| LED Açık/Kapalı Kontrolü | Yes |
| MAC Erişim Kontrolü Yönetimi | Yes |
| SNMP | v1, v2c, v3 |
| Yerel/Uzak Sistem Günlüğü Kaydı | Yes |
| Web-tabanlı Yönetim | Yes |
| DİĞERLERİ | |
|---|---|
| Sertifika | CE, FCC, RoHS, IC |

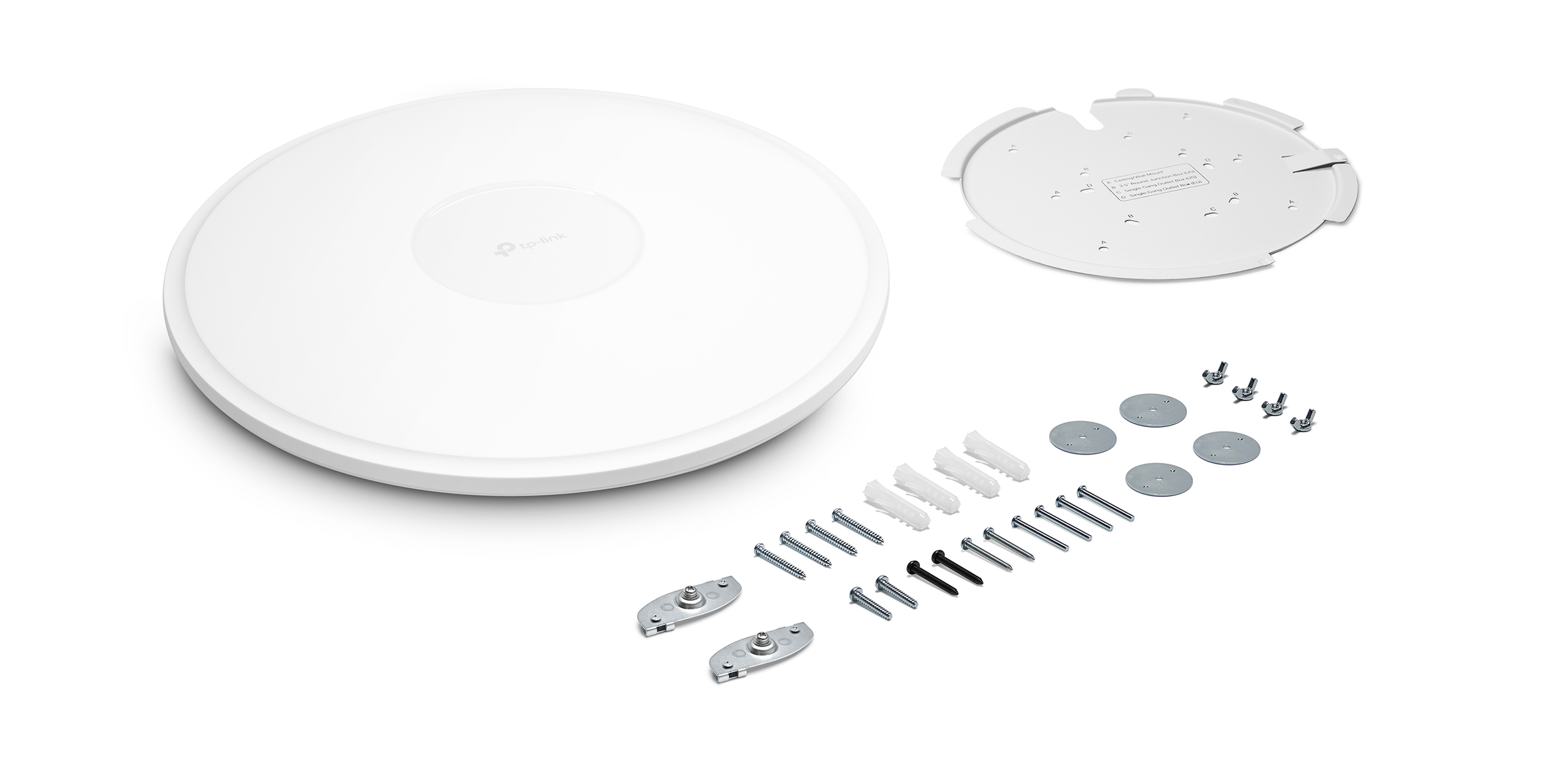

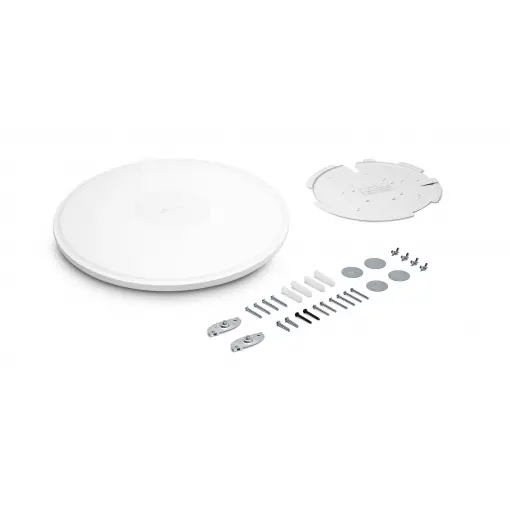

| Paket İçeriği | • EAP772 • Installation Guide • Ceiling/Wall Mounting Kit Note: Power Adapter is NOT included. |
| Ortam | • Operating Temperature: 0 °C–40 °C (32 °F–104 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing; |
| Frekans Bandı | 2,4 GHz |
| Kablosuz Şifreleme | WEP 128bit |
| Kablosuz Şifreleme | WEP 64bit |
| Kablosuz Şifreleme | WPA2-PSK |
| Kablosuz Şifreleme | WPA-PSK |
| Kullanım Yeri | İç Ortam |
| Frekans Bandı | 5 GHz |
| Ethernet/Arabirim | 1x RJ45 (10/100/1000) |
| Kablosuz Şifreleme | WPA |
| Türü | AccessPoint |
| Kablosuz Şifreleme | WEP |
| Frekans Bandı | 5,85 GHz |
| WiFi Uyumu | 802.11 ax/ac/n/g/b/a |
| Kablosuz Şifreleme | ENTERPRISE |
| Kablosuz Aktarım Hızı | 4800 Mbps |
